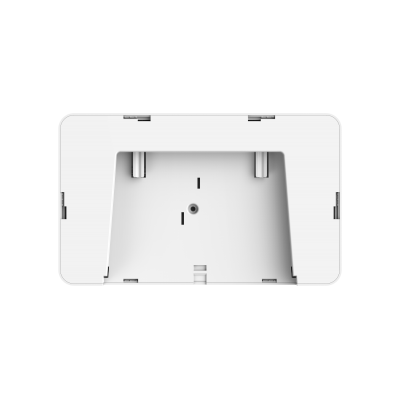

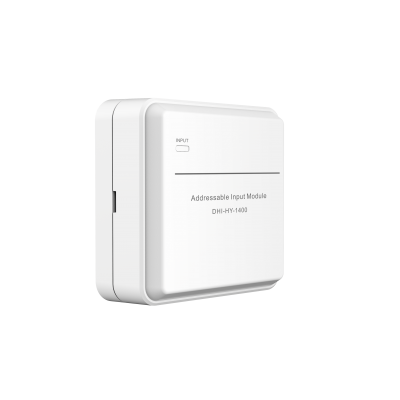

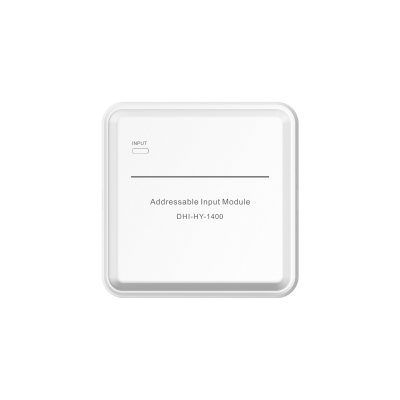

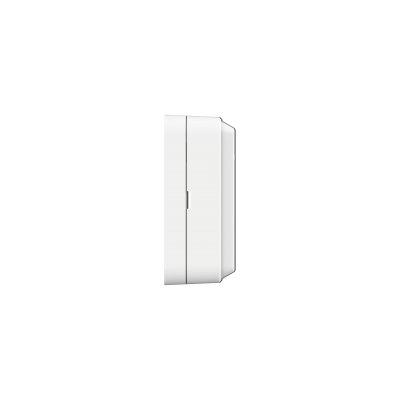

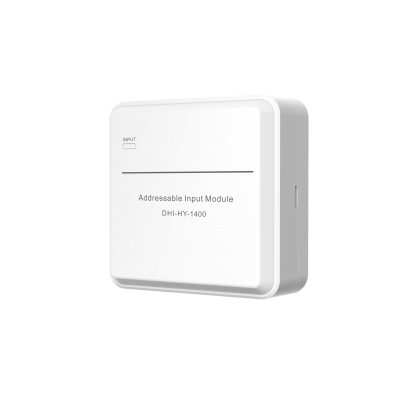

Modul đầu vào đầu ra định địa chỉ DHI-HY-1410

Electrical Working Voltage 24V DC Current Monitoring current: ≤ 150μA

Operating current: ≤ 9mA

Indicator •Input indicator: Red LED flashes once every 6 seconds, and flashes once every 2 seconds when malfunctioned

•Output indicator: Red LED is constantly off when works normally, and flashes once every 2 seconds when malfunctioned

Communication Wiring Two-wire, polarity-free Addressing Method Electrical encoder Address Range 1–254 Communication

Distance

≤ 1500 m Environment Operating Temperature –10°C to +55°C (+14°F to +131°F) Storage Temperature –20°C to +65°C (–4°F to +149°F) Operating Humidity ≤ 95% RH (no condensation) Construction Color White Dimensions (with base) 90 mm × 90 mm × 37 mm (3.54″ × 3.54″ × 1.46″) Weight (with base) 120 g (0.26 lb) Compliance Standard EN54-18 Electrical Working Voltage 24V DC Current Monitoring current: ≤ 150μA
